HTTP over SSH in Go

2025-07-22 2025-07-22 2203 words 10 minutes

Contents

1 HTTP over SSH in Go

1.1 Task

A web server is running on a remote machine and is accessible only via localhost; it does not accept external connections. The only way to access this machine is through SSH.

The goal is to implement the ability to send HTTP requests to this web server from within a Go application by establishing an SSH tunnel programmatically.

2 Web Server

To test the setup, we’ll write a small Python application that prints the request data: the HTTP method, query parameters, and headers.

from http.server import BaseHTTPRequestHandler, HTTPServer
from urllib.parse import urlparse, parse_qs
import json

class RequestHandler(BaseHTTPRequestHandler):
    def do_GET(self):
        parsed_url = urlparse(self.path)
        query_params = parse_qs(parsed_url.query)

        response = {
            "method": "GET",
            "path": parsed_url.path,
            "query_params": query_params,
            "headers": dict(self.headers)
        }

        self.send_response(200)
        self.send_header('Content-type', 'application/json')
        self.end_headers()
        self.wfile.write(json.dumps(response).encode('utf-8'))

def run_server(port=8000):
    server_address = ('127.0.0.1', port)
    httpd = HTTPServer(server_address, RequestHandler)
    print(f'Start server on {port}')
    httpd.serve_forever()

if __name__ == '__main__':
    run_server()

Run the server and verify that the web server is working:

$ curl -s -G "http://localhost:8000/path" -H "Custom-Header: SomeValue" -d "env=dev" -d "name=test" | jq

{
  "method": "GET",
  "path": "/path",
  "query_params": {
    "env": [
      "dev"
    ],
    "name": [
      "test"
    ]
  },
  "headers": {
    "Host": "localhost:8000",
    "User-Agent": "curl/8.12.1",
    "Accept": "*/*",
    "Custom-Header": "SomeValue"
  }
}

In the server log, we see:

python3 ./main.py

Start server on 8000
127.0.0.1 - - [18/Jul/2025 20:15:41] "GET /?lang=go&query-arg=my-arg-1 HTTP/1.1" 200 -

The web server is running.

3 Go Application

3.1 SSH Client

First, we need to create an SSH client.
We use the standard library golang.org/x/crypto/ssh for SSH functionality.
Specify the parameters: user, host, and key, then create the client using ssh.Dial. This is a standard practice.

func NewSshClient() (*ssh.Client, error) {
	key, err := os.ReadFile(sshKeyPath)
	if err != nil {
		return nil, err
	}

	signer, err := ssh.ParsePrivateKey(key)
	if err != nil {
		return nil, err
	}

	sshConfig := &ssh.ClientConfig{
		User: sshUser,
		Auth: []ssh.AuthMethod{
			ssh.PublicKeys(signer),
		},
		HostKeyCallback: ssh.InsecureIgnoreHostKey(),
	}

	sshAddr := fmt.Sprintf("%s:%d", sshHost, sshPort)

	client, err := ssh.Dial("tcp", sshAddr, sshConfig)
	if err != nil {
		return nil, err
	}

	return client, nil
}

3.2 HTTP Transport

In Go, the http.Client struct has a Transport field, which implements the http.RoundTripper interface and is responsible for sending HTTP requests.
To override the data transfer method, you can provide a custom implementation of the RoundTrip(*http.Request) (*http.Response, error) method.

For the transport, we will use socat launched inside an SSH session. The HTTP request is serialized and sent via stdin to socat; socat forwards the data over TCP to the web server port. The HTTP response is read from socat’s stdout and deserialized into an http.Response type.

This solution is not ideal and has many caveats:

socat may not be installed on the remote system.
socat can be replaced with ncat, but there are timeout issues. You can explicitly set them with ncat -q1, but that’s more of a temporary workaround.
Most likely, a native way to transmit raw HTTP requests to the web server should be used. However, I couldn’t find a better option.
Opening a new SSH session for every request for request isolation is not very efficient, but it works well enough as an example.

Code:

type SSHTransport struct {
	sshClient *ssh.Client
	httpAddr  string
}

func (t *SSHTransport) RoundTrip(req *http.Request) (*http.Response, error) {
	session, err := t.sshClient.NewSession()
	if err != nil {
		return nil, fmt.Errorf("failed to create SSH session: %w", err)
	}
	defer session.Close()

	stdin, err := session.StdinPipe()
	if err != nil {
		return nil, fmt.Errorf("failed to get stdin pipe: %w", err)
	}

	var stdout bytes.Buffer
	session.Stdout = &stdout

	var stderr bytes.Buffer
	session.Stderr = &stderr

	if err := session.Start("socat - TCP:" + t.httpAddr); err != nil {
		return nil, fmt.Errorf("failed to start socat: %w", err)
	}

	if err := req.Write(stdin); err != nil {
		return nil, fmt.Errorf("failed to write request: %v", err)
	}

	if err := session.Wait(); err != nil {
		return nil, fmt.Errorf("socat session error: %w", err)
	}

	if stderr.Len() > 0 {
		log.Printf("stderr: %s", stderr.String())
		return nil, fmt.Errorf("socat session error")
	}

	resp, err := http.ReadResponse(bufio.NewReader(&stdout), req)
	if err != nil {
		return nil, fmt.Errorf("failed to read response: %v", err)
	}

	return resp, nil
}

3.3 Combining the SSH Client and HTTP Client

Let’s write a simple example to demonstrate how it works.
Create an SSH client. Execute test commands to verify that the SSH session is working.
Create an HTTP client with a custom transport implementation.
Perform a test HTTP request using the standard library.

Code:

func main() {
	log.SetFlags(log.Lmicroseconds)

	client, err := NewSshClient()
	if err != nil {
		panic(err)
	}

	defer client.Close()

	for _, cmd := range []string{"hostname", "uptime", "whoami"} {
		session, err := client.NewSession()
		if err != nil {
			panic(err)
		}
		defer session.Close()

		output, err := session.CombinedOutput(cmd)
		if err != nil {
			panic(err)
		}

		log.Printf("%s -> %s", cmd, output)
	}

	httpClient := &http.Client{
		Transport: &SSHTransport{
			sshClient: client,
			httpAddr:  httpAddr,
		},
	}

	for _, arg := range []string{"my-arg-1"} {
		req, err := http.NewRequest(http.MethodGet, "http://localhost", nil)
		if err != nil {
			panic(err)
		}

		req.Header.Add("Custom-Header", arg)

		q := req.URL.Query()
		q.Add("lang", "go")
		q.Add("query-arg", arg)
		req.URL.RawQuery = q.Encode()

		resp, err := httpClient.Do(req)
		if err != nil {
			panic(err)
		}
		defer resp.Body.Close()

		body, err := io.ReadAll(resp.Body)
		if err != nil {
			panic(err)
		}

		log.Printf("Status: %s", resp.Status)
		log.Printf("Body: %s", body)
	}
}

3.4 Complete Solution

Full source code of the solution:

package main

import (
	"bufio"
	"bytes"
	"fmt"
	"io"
	"log"
	"net/http"
	"os"

	"golang.org/x/crypto/ssh"
)

const (
	sshUser    = "<user>"
	sshHost    = "<host>"
	sshPort    = 22
	sshKeyPath = "<key>"
	httpAddr   = "localhost:8000"
)

type SSHTransport struct {
	sshClient *ssh.Client
	httpAddr  string
}

func (t *SSHTransport) RoundTrip(req *http.Request) (*http.Response, error) {
	session, err := t.sshClient.NewSession()
	if err != nil {
		return nil, fmt.Errorf("failed to create SSH session: %w", err)
	}
	defer session.Close()

	stdin, err := session.StdinPipe()
	if err != nil {
		return nil, fmt.Errorf("failed to get stdin pipe: %w", err)
	}

	var stdout bytes.Buffer
	session.Stdout = &stdout

	var stderr bytes.Buffer
	session.Stderr = &stderr

	if err := session.Start("socat - TCP:" + t.httpAddr); err != nil {
		return nil, fmt.Errorf("failed to start socat: %w", err)
	}

	if err := req.Write(stdin); err != nil {
		return nil, fmt.Errorf("failed to write request: %v", err)
	}

	if err := session.Wait(); err != nil {
		return nil, fmt.Errorf("socat session error: %w", err)
	}

	if stderr.Len() > 0 {
		log.Printf("stderr: %s", stderr.String())
		return nil, fmt.Errorf("socat session error")
	}

	resp, err := http.ReadResponse(bufio.NewReader(&stdout), req)
	if err != nil {
		return nil, fmt.Errorf("failed to read response: %v", err)
	}

	return resp, nil
}

func NewSshClient() (*ssh.Client, error) {
	key, err := os.ReadFile(sshKeyPath)
	if err != nil {
		return nil, err
	}

	signer, err := ssh.ParsePrivateKey(key)
	if err != nil {
		return nil, err
	}

	sshConfig := &ssh.ClientConfig{
		User: sshUser,
		Auth: []ssh.AuthMethod{
			ssh.PublicKeys(signer),
		},
		HostKeyCallback: ssh.InsecureIgnoreHostKey(),
	}

	sshAddr := fmt.Sprintf("%s:%d", sshHost, sshPort)

	client, err := ssh.Dial("tcp", sshAddr, sshConfig)
	if err != nil {
		return nil, err
	}

	return client, nil
}

func main() {
	log.SetFlags(log.Lmicroseconds)

	client, err := NewSshClient()
	if err != nil {
		panic(err)
	}

	defer client.Close()

	for _, cmd := range []string{"hostname", "uptime", "whoami"} {
		session, err := client.NewSession()
		if err != nil {
			panic(err)
		}
		defer session.Close()

		output, err := session.CombinedOutput(cmd)
		if err != nil {
			panic(err)
		}

		log.Printf("%s -> %s", cmd, output)
	}

	httpClient := &http.Client{
		Transport: &SSHTransport{
			sshClient: client,
			httpAddr:  httpAddr,
		},
	}

	for _, arg := range []string{"my-arg-1"} {
		req, err := http.NewRequest(http.MethodGet, "http://localhost", nil)
		if err != nil {
			panic(err)
		}

		req.Header.Add("Custom-Header", arg)

		q := req.URL.Query()
		q.Add("lang", "go")
		q.Add("query-arg", arg)
		req.URL.RawQuery = q.Encode()

		resp, err := httpClient.Do(req)
		if err != nil {
			panic(err)
		}
		defer resp.Body.Close()

		body, err := io.ReadAll(resp.Body)
		if err != nil {
			panic(err)
		}

		log.Printf("Body: %s - %s", resp.Status, body)
	}
}

4 Running

Build the application and run it:

❯ go build -o /tmp/service ./main.go && /tmp/service

23:15:40.445698 hostname -> remote-host
23:15:41.214312 uptime ->  20:15:39  up  10:53,  2 users,  load average: 0.45, 0.33, 0.43
23:15:41.975354 whoami -> root
23:15:43.237978 Body: 200 - {"method": "GET", "path": "/", "query_params": {"lang": ["go"], "query-arg": ["my-arg-1"]}, "headers": {"Host": "localhost", "User-Agent": "Go-http-client/1.1", "Custom-Header": "my-arg-1"}}

Hooray! It worked.
The application connected to the remote server via SSH and performed an HTTP request to the local web server on that machine.

5 Network Traffic Analysis

5.1 tcpdump

Let’s run tcpdump on the remote server and see what data was transmitted over the network to the web server:

tcpdump -i any -A -s 0 -X -nn -l port 8000

Establishing a TCP connection. The three-way handshake: SYN, SYN-ACK, ACK:

20:15:41.376906 lo    In  IP 127.0.0.1.46738 > 127.0.0.1.8000: Flags [S], seq 3363993963, win 65495, options [mss 65495,sackOK,TS val 3490232963 ecr 0,nop,wscale 8], length 0
20:15:41.376939 lo    In  IP 127.0.0.1.8000 > 127.0.0.1.46738: Flags [S.], seq 2708443969, ack 3363993964, win 65483, options [mss 65495,sackOK,TS val 3490232963 ecr 3490232963,nop,wscale 8], length 0
20:15:41.376962 lo    In  IP 127.0.0.1.46738 > 127.0.0.1.8000: Flags [.], ack 1, win 256, options [nop,nop,TS val 3490232963 ecr 3490232963], length 0

socat sent the HTTP request, server acknowledged receipt:

20:15:41.377051 lo    In  IP 127.0.0.1.46738 > 127.0.0.1.8000: Flags [P.], seq 1:121, ack 1, win 256, options [nop,nop,TS val 3490232963 ecr 3490232963], length 120
	0x0000:  4500 00ac ccd1 4000 4006 6f78 7f00 0001  E.....@.@.ox....
	0x0010:  7f00 0001 b692 1f40 c882 796c a16f 9342  .......@..yl.o.B
	0x0020:  8018 0100 fea0 0000 0101 080a d008 ba83  ................
	0x0030:  d008 ba83 4745 5420 2f3f 6c61 6e67 3d67  ....GET./?lang=g
	0x0040:  6f26 7175 6572 792d 6172 673d 6d79 2d61  o&query-arg=my-a
	0x0050:  7267 2d31 2048 5454 502f 312e 310d 0a48  rg-1.HTTP/1.1..H
	0x0060:  6f73 743a 206c 6f63 616c 686f 7374 0d0a  ost:.localhost..
	0x0070:  5573 6572 2d41 6765 6e74 3a20 476f 2d68  User-Agent:.Go-h
	0x0080:  7474 702d 636c 6965 6e74 2f31 2e31 0d0a  ttp-client/1.1..
	0x0090:  4375 7374 6f72 6d2d 4865 6164 6572 3a20  Custom--Header:.
	0x00a0:  6d79 2d61 7267 2d31 0d0a 0d0a            my-arg-1....
20:15:41.377063 lo    In  IP 127.0.0.1.8000 > 127.0.0.1.46738: Flags [.], ack 121, win 256, options [nop,nop,TS val 3490232963 ecr 3490232963], length 0

Server sent the response, socat acknowledged receipt:

20:15:41.377910 lo    In  IP 127.0.0.1.8000 > 127.0.0.1.46738: Flags [P.], seq 1:125, ack 121, win 256, options [nop,nop,TS val 3490232964 ecr 3490232963], length 124
	0x0000:  4500 00b0 39ed 4000 4006 0259 7f00 0001  E...9.@.@..Y....
	0x0010:  7f00 0001 1f40 b692 a16f 9342 c882 79e4  .....@...o.B..y.
	0x0020:  8018 0100 fea4 0000 0101 080a d008 ba84  ................
	0x0030:  d008 ba83 4854 5450 2f31 2e30 2032 3030  ....HTTP/1.0.200
	0x0040:  204f 4b0d 0a53 6572 7665 723a 2042 6173  .OK..Server:.Bas
	0x0050:  6548 5454 502f 302e 3620 5079 7468 6f6e  eHTTP/0.6.Python
	0x0060:  2f33 2e36 2e31 350d 0a44 6174 653a 2046  /3.6.15..Date:.F
	0x0070:  7269 2c20 3138 204a 756c 2032 3032 3520  ri,.18.Jul.2025.
	0x0080:  3230 3a31 353a 3431 2047 4d54 0d0a 436f  20:15:41.GMT..Co
	0x0090:  6e74 656e 742d 7479 7065 3a20 6170 706c  ntent-type:.appl
	0x00a0:  6963 6174 696f 6e2f 6a73 6f6e 0d0a 0d0a  ication/json....
20:15:41.377926 lo    In  IP 127.0.0.1.46738 > 127.0.0.1.8000: Flags [.], ack 125, win 256, options [nop,nop,TS val 3490232964 ecr 3490232964], length 0
20:15:41.378014 lo    In  IP 127.0.0.1.8000 > 127.0.0.1.46738: Flags [P.], seq 125:316, ack 121, win 256, options [nop,nop,TS val 3490232964 ecr 3490232964], length 191
	0x0000:  4500 00f3 39ee 4000 4006 0215 7f00 0001  E...9.@.@.......
	0x0010:  7f00 0001 1f40 b692 a16f 93be c882 79e4  .....@...o....y.
	0x0020:  8018 0100 fee7 0000 0101 080a d008 ba84  ................
	0x0030:  d008 ba84 7b22 6d65 7468 6f64 223a 2022  ....{"method":."
	0x0040:  4745 5422 2c20 2270 6174 6822 3a20 222f  GET",."path":."/
	0x0050:  222c 2022 7175 6572 795f 7061 7261 6d73  ",."query_params
	0x0060:  223a 207b 226c 616e 6722 3a20 5b22 676f  ":.{"lang":.["go
	0x0070:  225d 2c20 2271 7565 7279 2d61 7267 223a  "],."query-arg":
	0x0080:  205b 226d 792d 6172 672d 3122 5d7d 2c20  .["my-arg-1"]},.
	0x0090:  2268 6561 6465 7273 223a 207b 2248 6f73  "headers":.{"Hos
	0x00a0:  7422 3a20 226c 6f63 616c 686f 7374 222c  t":."localhost",
	0x00b0:  2022 5573 6572 2d41 6765 6e74 223a 2022  ."User-Agent":."
	0x00c0:  476f 2d68 7474 702d 636c 6965 6e74 2f31  Go-http-client/1
	0x00d0:  2e31 222c 2022 4375 7374 6f72 6d2d 4865  .1",."Custom--He
	0x00e0:  6164 6572 223a 2022 6d79 2d61 7267 2d31  ader":."my-arg-1
	0x00f0:  227d 7d                                  "}}
20:15:41.378022 lo    In  IP 127.0.0.1.46738 > 127.0.0.1.8000: Flags [.], ack 316, win 256, options [nop,nop,TS val 3490232964 ecr 3490232964], length 0

Closing the TCP connection. The server closes the connection and the client acknowledges. Then the client closes the connection and the server acknowledges:

20:15:41.378091 lo    In  IP 127.0.0.1.8000 > 127.0.0.1.46738: Flags [F.], seq 316, ack 121, win 256, options [nop,nop,TS val 3490232964 ecr 3490232964], length 0
20:15:41.418927 lo    In  IP 127.0.0.1.46738 > 127.0.0.1.8000: Flags [.], ack 317, win 256, options [nop,nop,TS val 3490233005 ecr 3490232964], length 0
20:15:41.878718 lo    In  IP 127.0.0.1.46738 > 127.0.0.1.8000: Flags [F.], seq 121, ack 317, win 256, options [nop,nop,TS val 3490233464 ecr 3490232964], length 0
20:15:41.878754 lo    In  IP 127.0.0.1.8000 > 127.0.0.1.46738: Flags [.], ack 122, win 256, options [nop,nop,TS val 3490233465 ecr 3490233464], length 0

Overall, everything is as expected — standard operations with nothing extra.
The web server and socat were on the same network and communicated through localhost.

5.2 Wireshark

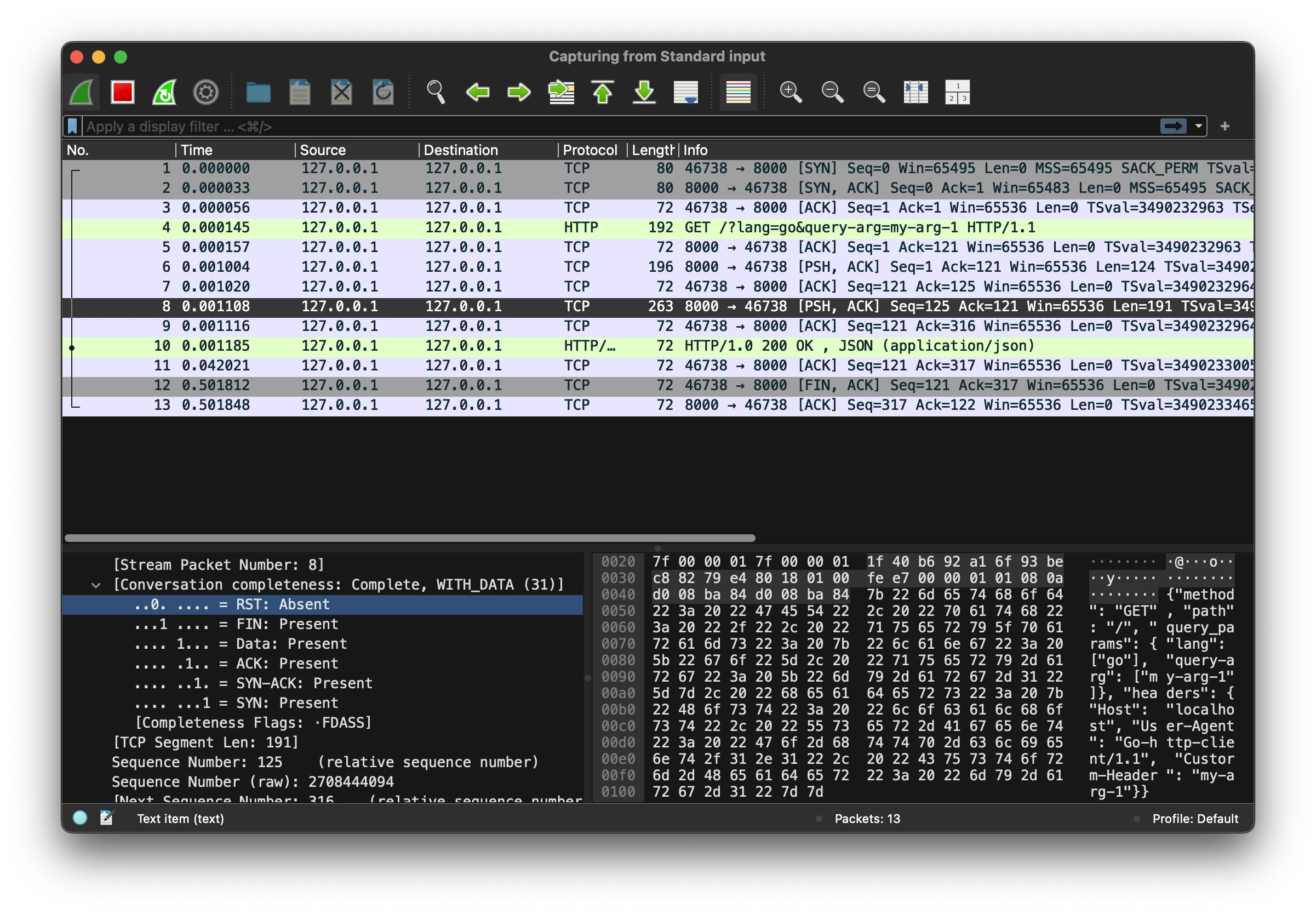

Wireshark is usually not installed on remote hosts. Therefore, we capture all necessary packets on the remote host in real-time by streaming output from tcpdump:

ssh root@remote-host  "tcpdump -i any -U -s0 -w - 'port 8000'" | wireshark -k -i -

In Wireshark, you get the same data as in tcpdump, but Wireshark is more convenient to use.
